Supervision Centrale électrique d’un Aéroport
Cet exemple montre l’exemple d’un système
de supervision d’une centrale d’un aéroport. Le projet consiste à mettre en
place un serveur web afin de visualiser en temps réel la température dans une
centrale d’un aéroport. Si la température ou le gaz dépasse la limite une
alerte s’affiche sur notre pas web et allume la led rouge sinon une led verte
est allumée. La communication peut être établie via Wifi ou via Ethernet. La
température est affichée en permanence sur un LCD.
Matériel
requis
·
Carte
Arduino Yun
·
Capteur
de température LM35
·
Capteur
Gaz
·
Leds
·
LCD
·
Fils
de raccordement

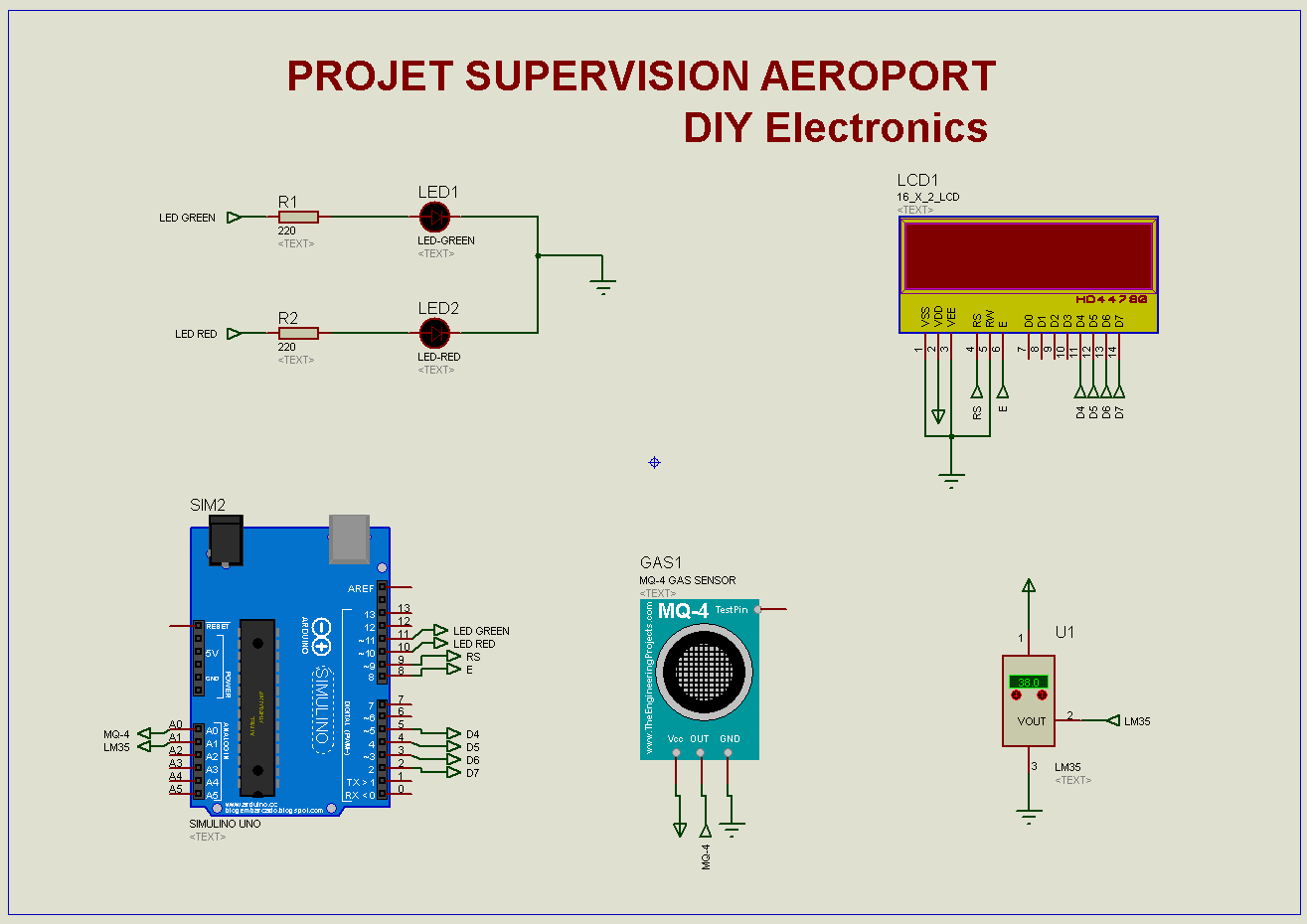

Simulation
Routage
Code
/ *
DIY Electronics par Bessem
BELGHITH
Supervision centrale d'un aéroport
* /
//adresse 192.168.0.224/arduino/test
#include <Bridge.h>
#include <YunServer.h>
#include <YunClient.h>
#include <Process.h>
#include <LiquidCrystal.h>
// Listen on default port 5555, the webserver on the Yun
// will forward there all the HTTP requests for us.
YunServer server;
// declaration des pins
//pins led
int ledvert=8;
int ledrouge=9;
// PINS LCD
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(7, 6, 5, 4, 3, 2);
int val;
const int tempPin = A1;
//float analogInPin = A5;
int sensorValue = 0; // value
read from the sensor
int cel;
String msg1,msg2;
//constantes
char c;
int b=0;
int GASdigital=10;
void setup() {
lcd.clear();
// Affichage Message d'entrée
" projet SUPERVISION CENTRALE"
lcd.clear();
lcd.begin(16, 2);
lcd.setCursor(0,0);
lcd.print("PROJET CONTROL ");
lcd.setCursor(0,1);
lcd.print(" CENTRALE
");
delay(2500);
lcd.clear();
Serial.begin(9600);
// Bridge startup
pinMode(13,OUTPUT);
digitalWrite(13, LOW);
Bridge.begin();
digitalWrite(13, HIGH);
// Listen for incoming connection
only from localhost
// (no one from the external
network could connect)
// server.listenOnLocalhost();
server.begin();
pinMode(tempPin,INPUT);
pinMode(GASdigital,INPUT);
// pinMode(analogInPin,INPUT);
pinMode(ledvert,OUTPUT);
pinMode(ledrouge,OUTPUT);
pinMode(A0, OUTPUT);
pinMode(A2, OUTPUT);
digitalWrite(A0, HIGH);
digitalWrite(A2, LOW);
digitalWrite(ledrouge, LOW);
digitalWrite(ledvert, LOW);
// analogReference(DEFAULT);
}
void loop() {
val = analogRead(tempPin);
float mv = ( val/1024.0)*5000;
float cel = mv/10;
delay(500);
if (cel > 21)
{
digitalWrite(ledvert, LOW); // sets the LED on
digitalWrite(ledrouge, HIGH); // sets the LED on
msg1="ALERTE CHAUFFAGE
CENTRALE";
}
else{
digitalWrite(ledvert,
HIGH); // sets the LED on
digitalWrite(ledrouge, LOW); //
sets the LED on
msg1="";
}
// Affichage Message
lcd.clear();
lcd.setCursor(0,0);
lcd.print("TEMPERATURE = ");
lcd.setCursor(3,1);
lcd.print(cel);
lcd.print("*C");
//lcd.setCursor(0,1);
//lcd.print("GAZ = ");
//lcd.print(sensorValue);
//sensorValue = analogRead(analogInPin);
// Get clients coming from server
YunClient client = server.accept();
// There is a new client?
if (client) {
// Process request
/////////////////////////////////////////////////////////////////
// Enable HTML
client.println("TEST
PAGE HTML ");
client.println("BY
BESSEM BELGHITH");
client.println();
//Show UI
client.println("<HTML>");
client.println("<HEAD>");
client.println("<meta
name='apple-mobile-web-app-capable' content='yes' />");
client.println("<meta
name='apple-mobile-web-app-status-bar-style' content='black-translucent'
/>");
client.println("<link rel='stylesheet' type='text/css' href='http://randomnerdtutorials.com/ethernetcss.css'
/>");
client.println("<TITLE>Projet Supervision Centrale Aeroport
de Monastir </TITLE>");
client.println("</HEAD>");
client.println("<BODY>");
client.println("<H1>PROJET
SUPERVISION CENTRALE AEROPORT MONASTIR</H1>");
client.println("<hr />");
client.println("<br />");
client.print("<H2>TEMPERATURE EN °C: <H2>");
client.print(cel);
client.print("<br>");
client.println("<br
/>");
client.print(msg1);
client.print("<br>");
client.println("<br />");
client.print(msg2);
client.print("<br>");
client.println("<br />");
client.println("<p>Réalisé par Bessem
BELGHITH</p>");
client.println("<br />");
client.println("</BODY>");
client.println("</HTML>");
client.print("<head>");
client.print("<meta http-equiv=\"refresh\"
content=\"1\">");
client.print("</head>");
int value = client.parseInt();
Serial.println(value);
// Close connection and free
resources.
client.stop();
}
delay(50); // Poll every 50ms
if (digitalRead(GASdigital) == HIGH)
{
msg2="ALERTE GAZ DANS LA CENTRALE";
}
else{
msg2="";
}
}
